ACiQ 5 Ton 15.2 SEER2 High Efficiency Central Heat Pump System | Inverter

ACiQ's heat pump systems provide the best of both worlds; a self-adjusting, mini-split-style inverter condenser paired with a communicating air handler that connects to your existing ductwork.

How is it different from a traditional heat pump?

• Variable BTU Inverter ramps up and down to match demand

• Smart system with soft startups to maximize efficiency
• OK to size for heat and will not short cycle during cooling

• Rated for efficient heating down to 5°F outdoor temperatures


Overview

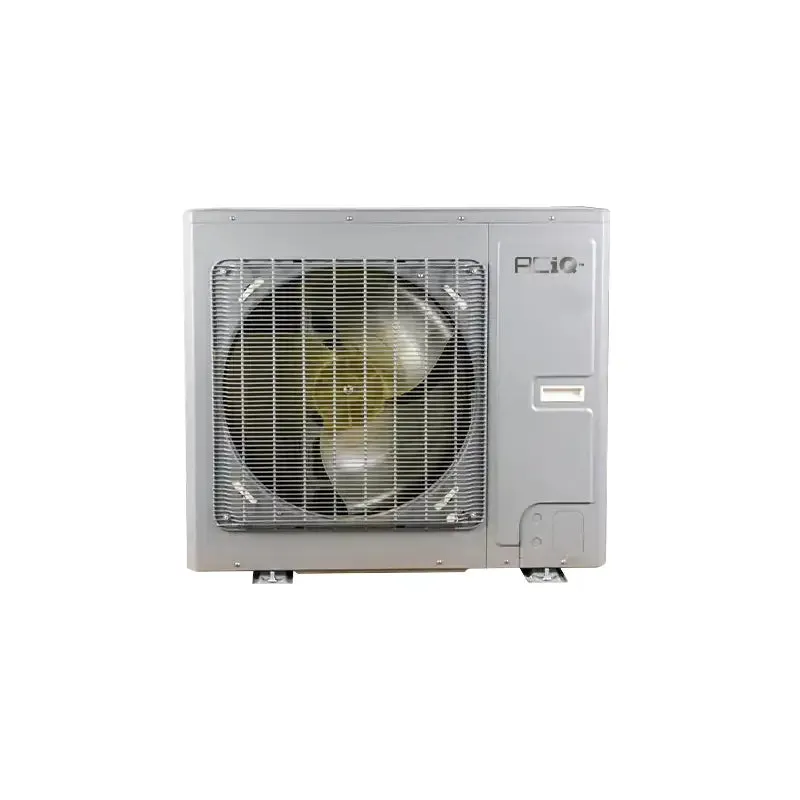

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This enables the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning System - This system is equipped with sensors that monitor air temperature inside and outside, system performance, duct pressure, and refrigerant temperature. Upon initial startup, it enters a learning mode, keeping air moving across the sensors and storing information to ensure future startups and run cycles are optimized for maximum efficiency.

Size for Heat - The self-adjusting inverter design allows you to size your system based on heat demand. Unlike standard heat pumps, which can lead to a muggy house in summer if sized for heat, the ACiQ 5-ton heat pump system automatically adjusts to run like a smaller unit to keep you cool and dry.

QUICK FACTS

• 12,000 BTU to 60,000 BTU variable output based on demand
• Inverter heat pump system for use with ductwork
• Efficient cooling from 5°F to 122°F outdoor temperatures

• Efficient heating from 5°F to 75°F outdoor temperatures

• Durable Gold Fin condenser coil coating

• Quiet operation even at the highest workloads


Performance

With an efficiency rating of 15.2 SEER2, the variable output ACiQ-60-EHPB / ACiQ-60-AHB will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 60,000 BTU without short cycling.

ACiQ 5 Ton 15.2 SEER High Efficiency Central Heat Pump | Inverter

Overview

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning System - This system is packed with sensors and controls – air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for Heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ High Efficiency 5-ton heat pump system automatically adjusts to run like a 4-ton, 3-ton or a 2-ton to keep you cool and dry.

QUICK FACTS

• Programmable, communicating thermostat included

• Intelligent comfort at an affordable cost
• 15.2 SEER heat pump system for use with ductwork
• Efficient cooling from 5°F to 118°F outdoor temperatures
• Efficient heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating

• Quiet operation at even the highest workloads

60,000 BTU, 15.2 SEER2

With an efficiency rating of 15.2 SEER2, the variable output SC-60-EHPB will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling.

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is protected by ACiQ's 7 years parts, and 12 years compressor warranty.

5 Ton ACiQ Central Air Handler

Enhanced Comfort at Maximum Efficiency

The SC-60-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

• 54,000 BTU, 5 ton central ducted air handler
• Wired smart thermostat included

• Or – use your preferred 24v thermostat

• Variable DC blower

• Upflow, dowflow, horizontal left or right

• Manufactured Home and mobile home approved


Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Next Gen Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.

Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.

What's Included:

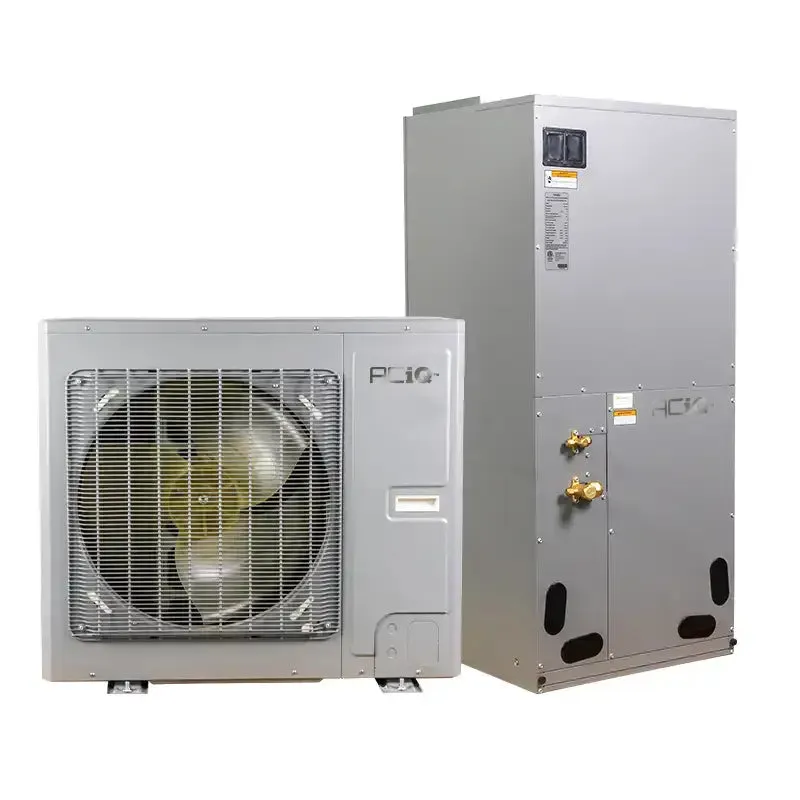

• 1x ACiQ 5 Ton 15.2 SEER High Efficiency Central Heat Pump | Inverter

• 1x 5 Ton ACiQ Central Air Handler


Condenser Specifications:

Air Handler Specifications:
