DESCRIPTION

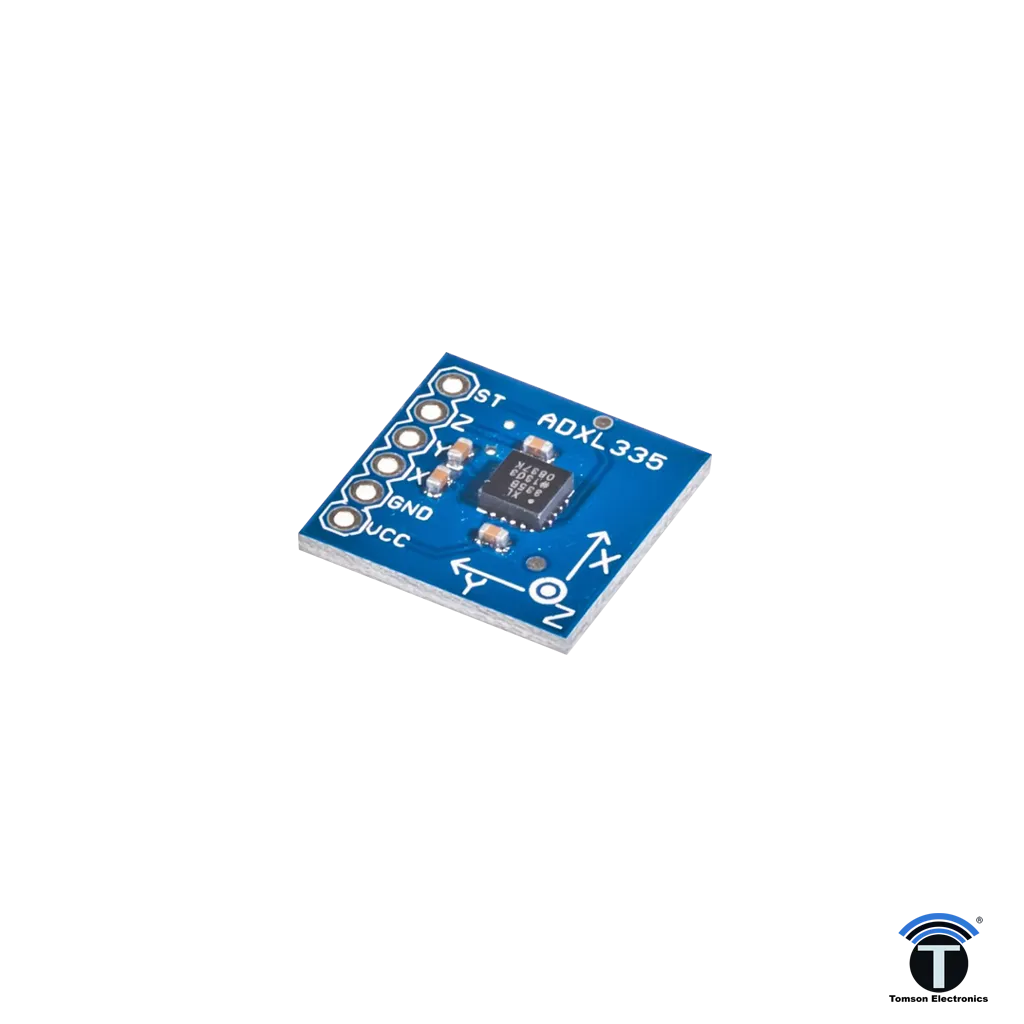

The ADXL 335, 3-axis accelerometer, now has an onboard 3.3V regulator - making it a perfect sensor module for Arduino, Raspberry Pi, and similar Microcontrollers. This breakout comes with 3 analog outputs for X, Y and Z axis breakout board. The ADXL335 is the latest and greatest from Analog Devices, known for their exceptional quality MEMS devices and applications in Robotics is now available at Tomson Electronics, Kochi, Kerala, India.

The VCC takes up to 5V in and regulates it to 3.3V with an output pin.
The analog outputs are ratiometric: that means that 0g measurement output is always at half of the 3.3V output (1.65V), -3g is at 0v and 3g is at 3.3V with full scaling in between.Fully assembled and tested. The XYZ filter capacitors are 0.1uF for a 50 Hz bandwidth.

DEVELOPMENT SOURCES

FEATURES

• 3-axis sensing Small,
• low-profile package 4 mm × 4 mm × 1.45 mm LFCSP
• Low power - 350 μA (typical)
• Single-supply operation 1.8 V to 3.6 V
• 0,000 g shock survival
• Excellent temperature stability
• BW adjustment with a single capacitor per axis
