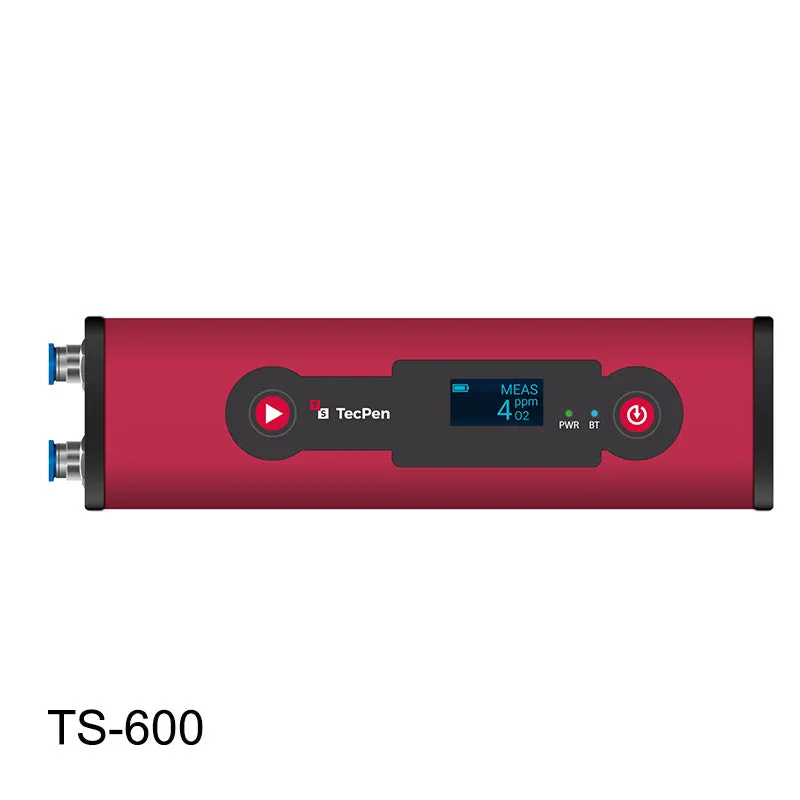

The TS-600 Dissolved Oxygen Meter provides customers with an accurate oxygen measurement in mg/L or parts per billion (ppb) in water and other liquids. This portable, rechargeable DO meter is useful for measuring trace oxygen levels from 0-2,000 ppb for quality control in packaged liquids like beer, or for biological or industrial applications.
This device is designed to be used in a process with pressurized liquid from a sampling valve, or with an external pump having 1 L/min. flow. Because it relies on fluid pressure instead of an internal pump. It can also monitor trace oxygen in real time for hours before recharging.
Unlike EC sensors, this optical oxygen sensor is not affected by other gases including Nitrogen or Carbon Dioxide. This is because there are no moving parts and the device requires virtually no maintenance. Measurements are typically taken in seconds and the data can be logged to internal memory and downloaded via USB.
Tecsense sensors are CE, FCC, IC, KC, and MIC marked and meet the requirements of ASTM F2714-08 and the European and Canadian standards for Food Safety. The company is DIN ISO 9001/2015 certified*
Features
- Accurate opto-chemical oxygen sensor
- Easy to Use, On-the-Go analysis
- Data logging and download via USB
- Measures 0 - 2,000 ppb
- Li-ion rechargeable batteries
- Designed for the beverage, biological, and industrial applications
- Arrives with certificate of calibration
Models
- TS-600 - Dissolved Oxygen Meter
- TS-700 -
Specifications
- Measurement range: 0 – 2000 ppb or 0-2 mg/L
- Accuracy 0-200 ppb: ± 2% Mev**
- Accuracy 200-1000 ppb: ±3% Mv*
- Accuracy 1,000-2,000 ppb: ±5% Mv*
- Resolution: 1ppb or 0.001 mg/L
- Max. Pressure: 5 bar
- Response time at 25°C/77°F: <150 ms
- Temp. range Min./Max: -10°C/ 60°C (14°F/140°F)
- Power supply: 5V USB and LiPo
- Rechargeable battery lifetime: > 3h per charge
- Data Interface: USB
- Temperature compensation: 4-30°C (39,2-86°F)
- Display: OLED
- Cleaning housing: No organic solvents, 40% EtOH
- Cleaning sample line: Water, 40% EtOH, Mild detergents, no organic solvents
- Parts touching sample: St. 1.4404/PTFE/Glass
- Case: Anodized aluminum
- Case with Device Weight: 2.45 lbs.
- Case Dimensions: 12 x 11 x 3.25 inches
- Device Weight: 0.50 lbs.
- Device Dimensions: 7 x 2 x 1 inch
- Protection class: IP 65
- Main service interval (Service including necessary retrofitting): 3 years
- Sensor cap replacement interval: 1 year
- Recommended zero-point adjustment by customer: 3 months
*Mv = measured value | **Mev = measured end value
Warranty
- 1-year warranty - see
