Product Details
＋

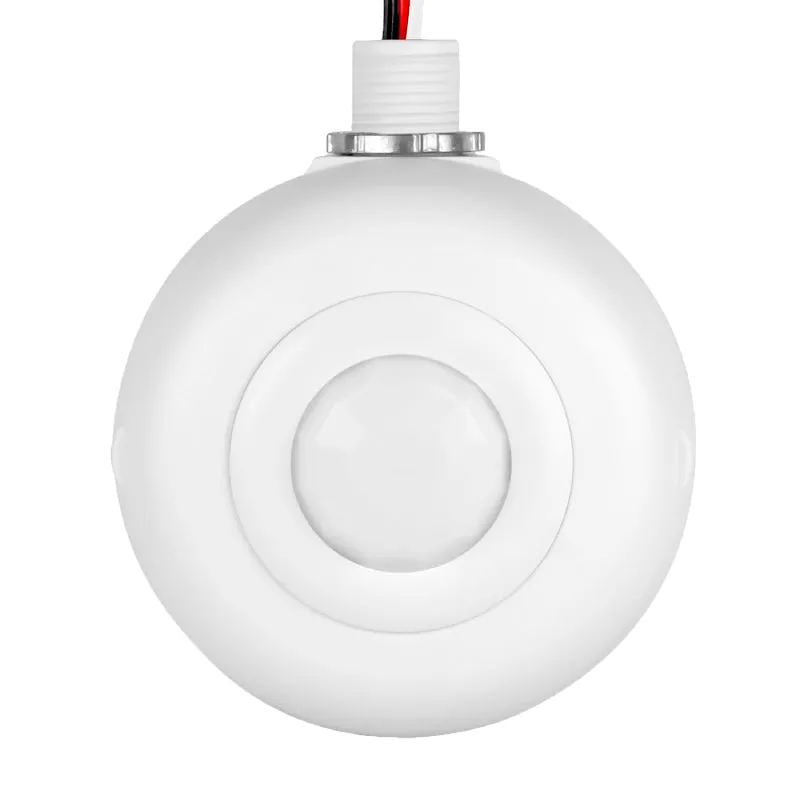

The ENERLITES MPC-50HD is a commercial grade line voltage high bay ceiling sensor that operates dimmable lights using passive infrared (PIR) technology.
Features
- Color: White
- Passive Infrared Technology (PIR)
- Used for 0-10VDC LED dimming
- Comes with 2 Lenses: 1 extended range lens for high bay, 1 for low mounting height
- Lens 1: MPC-50HD-L1: Mounting height: 50ft Field of view: 360° Coverage :2800 sq.ft
- Lens 2: MPC-50HD-L2: Mounting height: 8ft Field of view: 360° Coverage :1200 sq.ft
- Adjustable time delay: 15 sec to 30 min
- Sensitivity adjustment: 50% or 100%
- Input voltage: 120/277 VAC, 50/60 Hz
- Motor: 1/4 HP, 120VAC, 60 Hz
- Incandescent/Tungsten: 800W @ 120VAC, 50/60 Hz
- Fluorescent/Ballast: 800VA @ 120VAC / 1200VA @ 277VAC. 50/60 Hz
- Operation Temperature: 32°F to 131°F (0°C to 55°C)
- Two-year limited warranty
