Product Details
＋

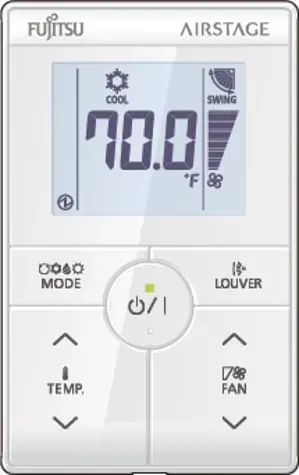

The simple wireless remote controller is a backlit 2 wire remote with built in temperature sensors. It offers set point adjustments in 1 F increments. It concentrates on basic functions such as start/stop, fan control, temperature settings and operation modes. This controller is compatible with most wall mounted single zones (but requires accessory communication kit #UTY-TWRXZ2), and independently controls all other non-wall mounted single zones and a multi-zone indoors.
General Information
- Simple Wired Remote Controller requires two wire communication
- It requires UTY-TWRXZ2 (accessory communication kit) to operate with wall mounted indoor units
- It works independently with all other non-wall mounted indoors
Package Includes
- UTY-RSRY Simple Wired Remote Controller
Features
- Equipped with mode adjustment
- Built in room temperature sensor in the remote
- Temperature adjustment in 1 F increments
- Auto Changeover Mode in heating & cooling
- Vertical louver adjustment for all indoor units
- Temperature set point range limitation without central controller
- Control, Start/Stop, operation mode, temperature setting and test operation
- Stylish design & operation button
- Backlight large LCD screen
- Max. 16 indoor units can be connected to one remote
Product Specs
- Power Supply DC (V): 12
- Max Power Consumption (W): .3
- Wire Type: non-polar 2 core shielded twisted pair cable
- Operating Temperature Range: 32-114 F
- Storage Temperature Range: 14-158 F
- Humidify Range (%): 0-95
- Weight (oz.): 4
- Dim. Net (HxWxD): 4 3/4" x 2 15/16" x 3/4"
