Product Details
＋
Overview
Summary
Multi Zone One-Way Recessed Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 12,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 SEER2. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
- Dual Zone:
- Triple Zone:
- Quad Zone:
- Quint Zone:
Notes
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

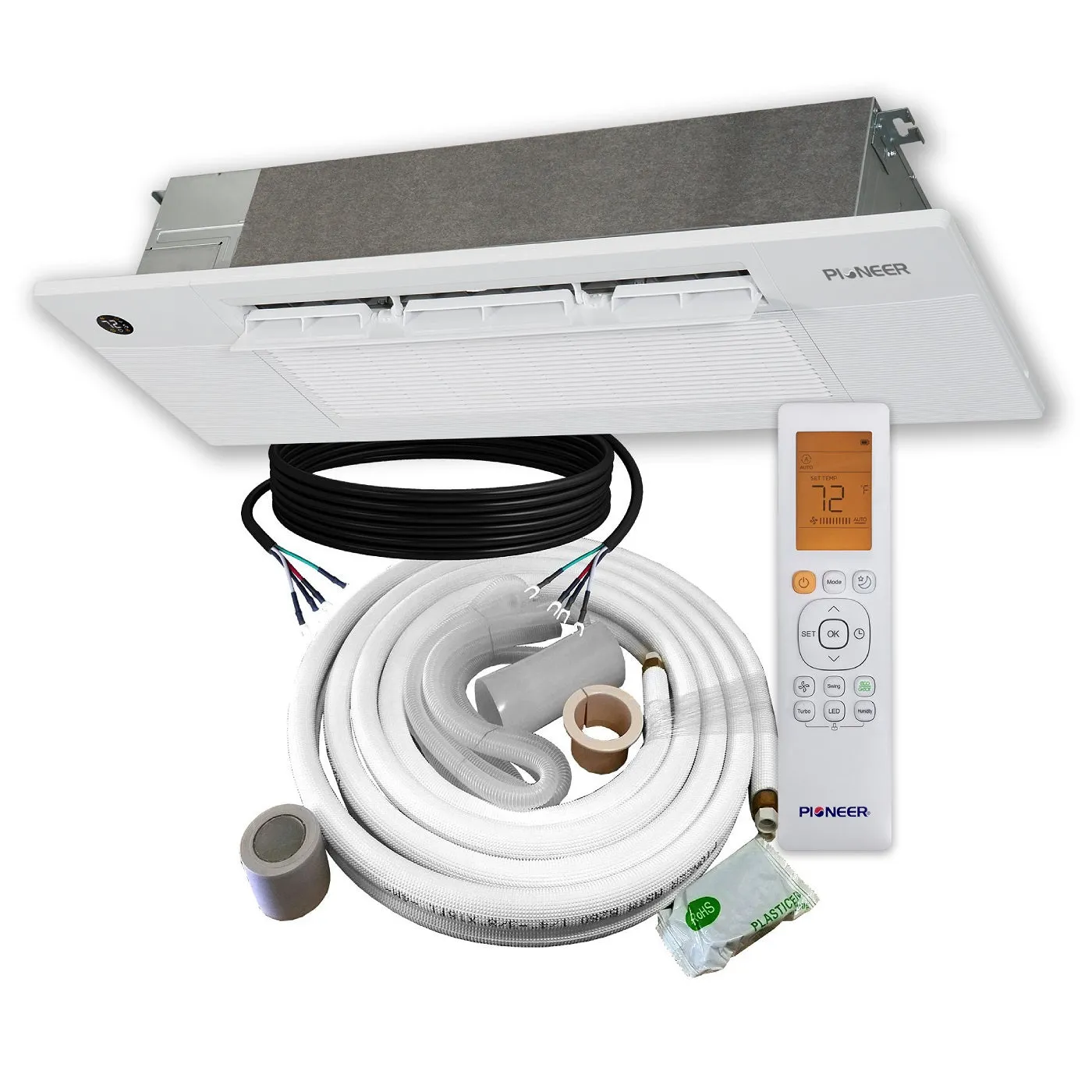

What's Included
- Indoor Unit
- Decorative Panel

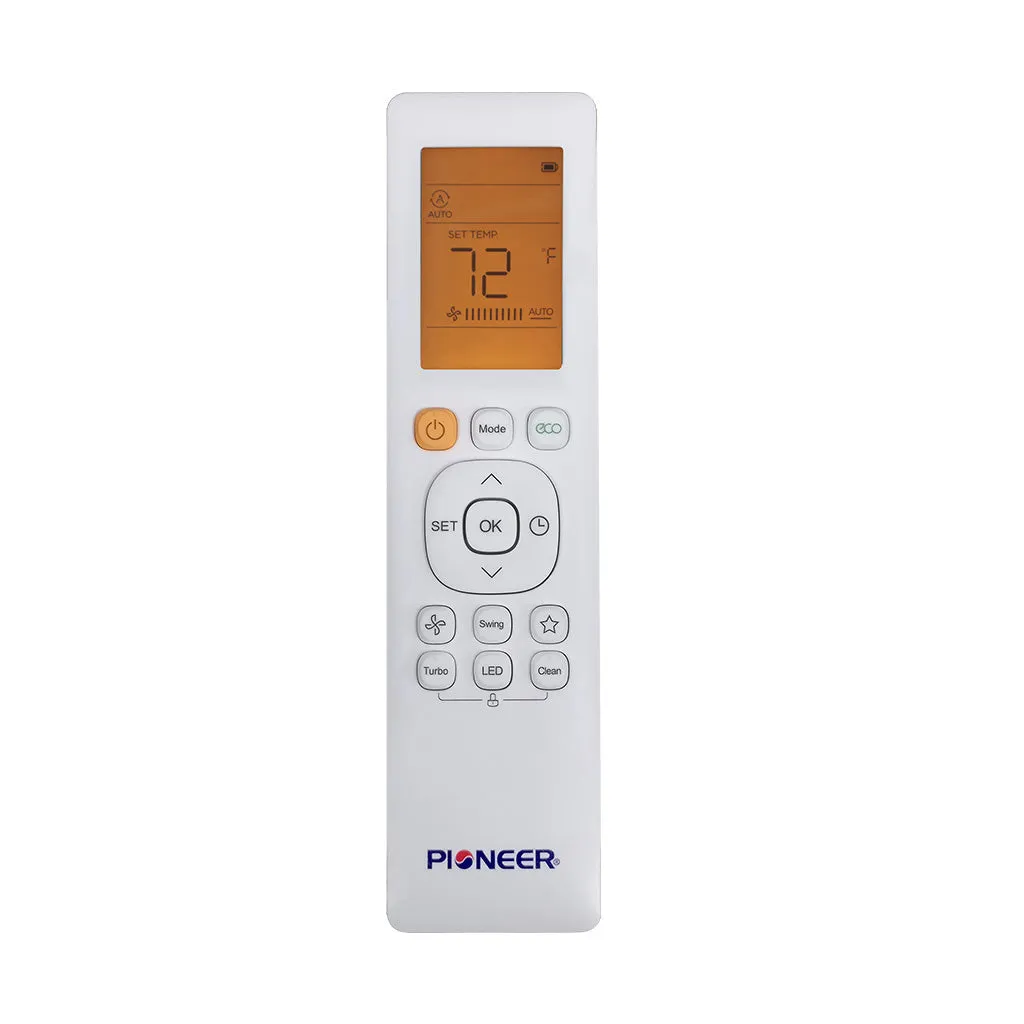

- Wireless Remote Control

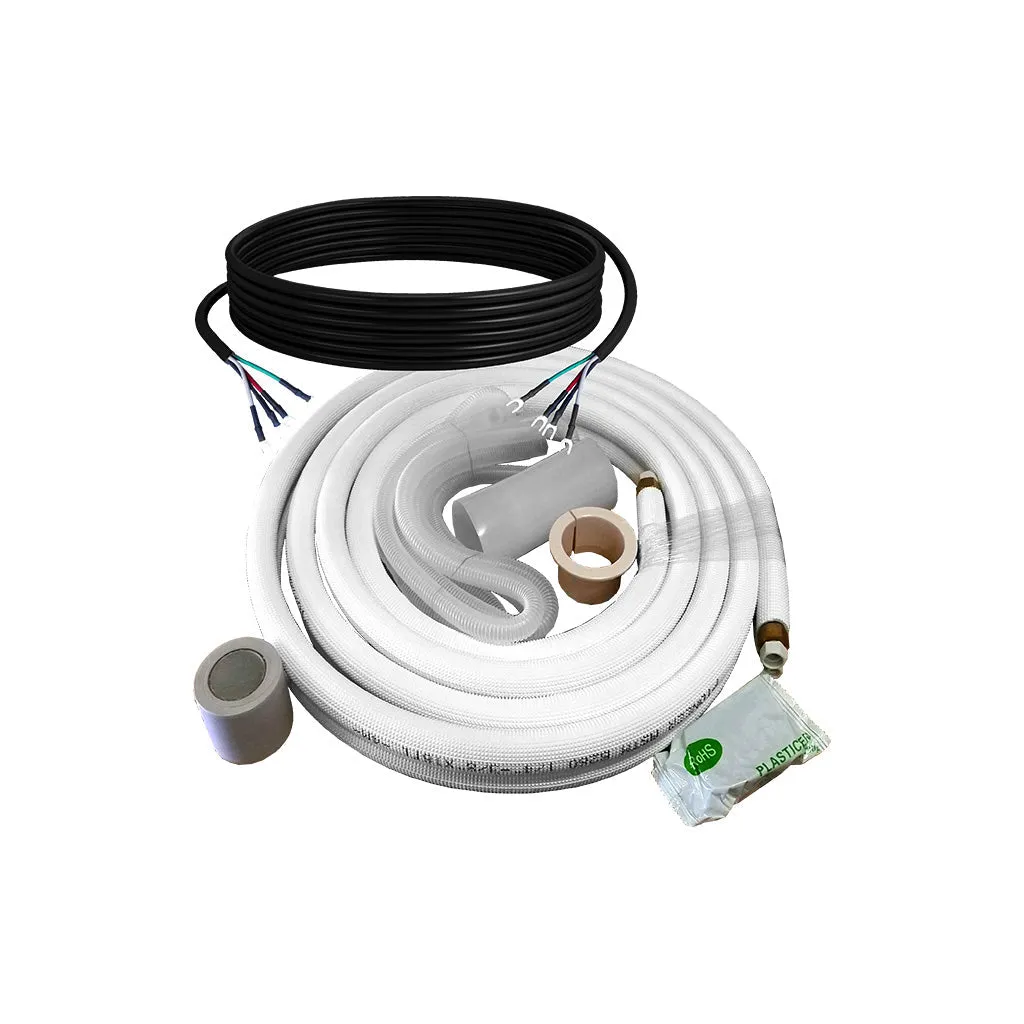

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 12,000 BTU/h
- Cooling SEER: 22.0
- Heating Capacity: 12,500 BTU/h
- Heating HSPF: 9.8
- Suitable Area: 200~450 Sq.F
- Air Flow (Turbo/Hi/Med/Lo): 600 / 530 / 480 / 420 CFM
- Sound Level (Hi/Med/Lo): 40.5 / 38.5 / 34.5 dB(A)
- Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
- Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
- Net / Carton Weight: 45.2 / 82.9 Lbs
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
-
Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs
