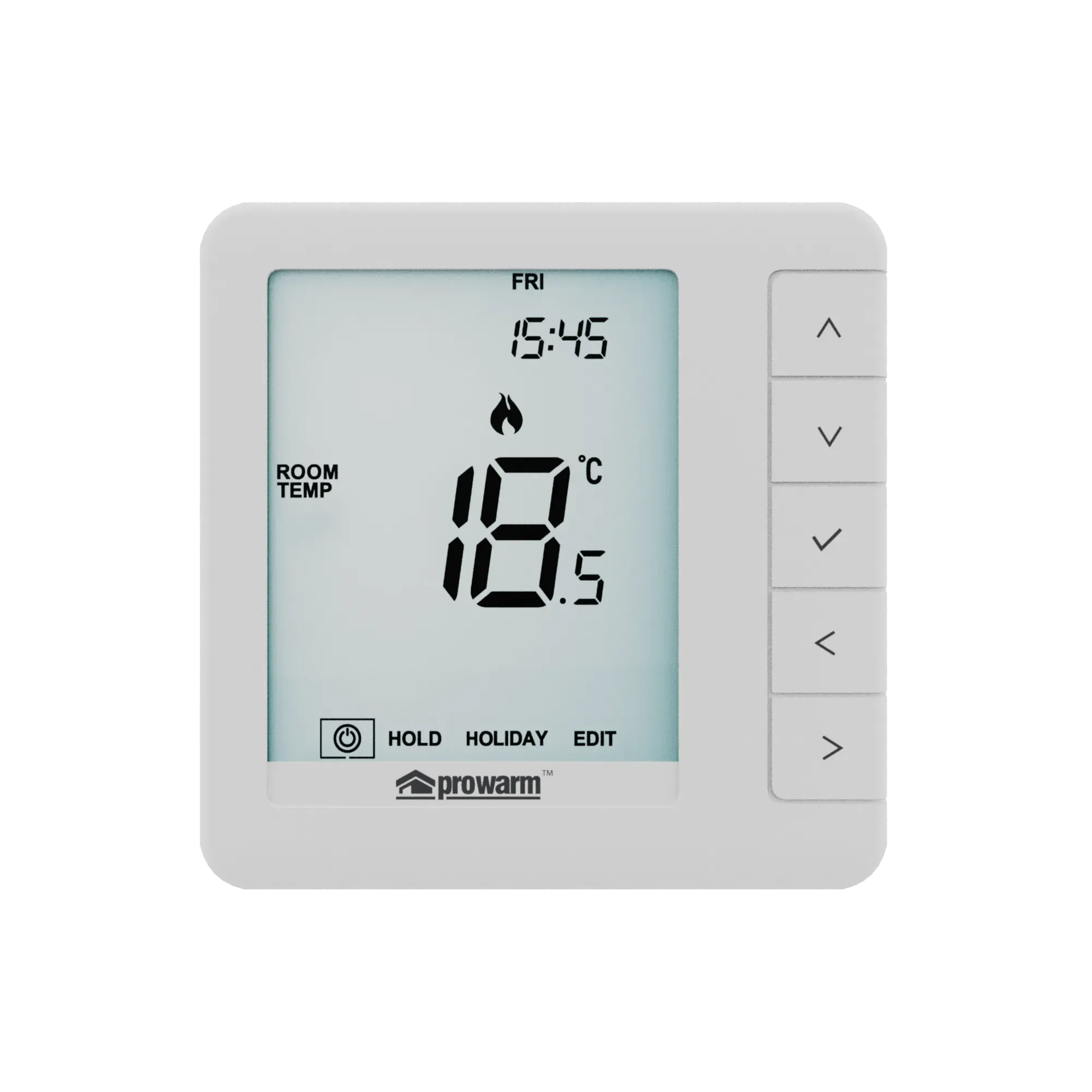

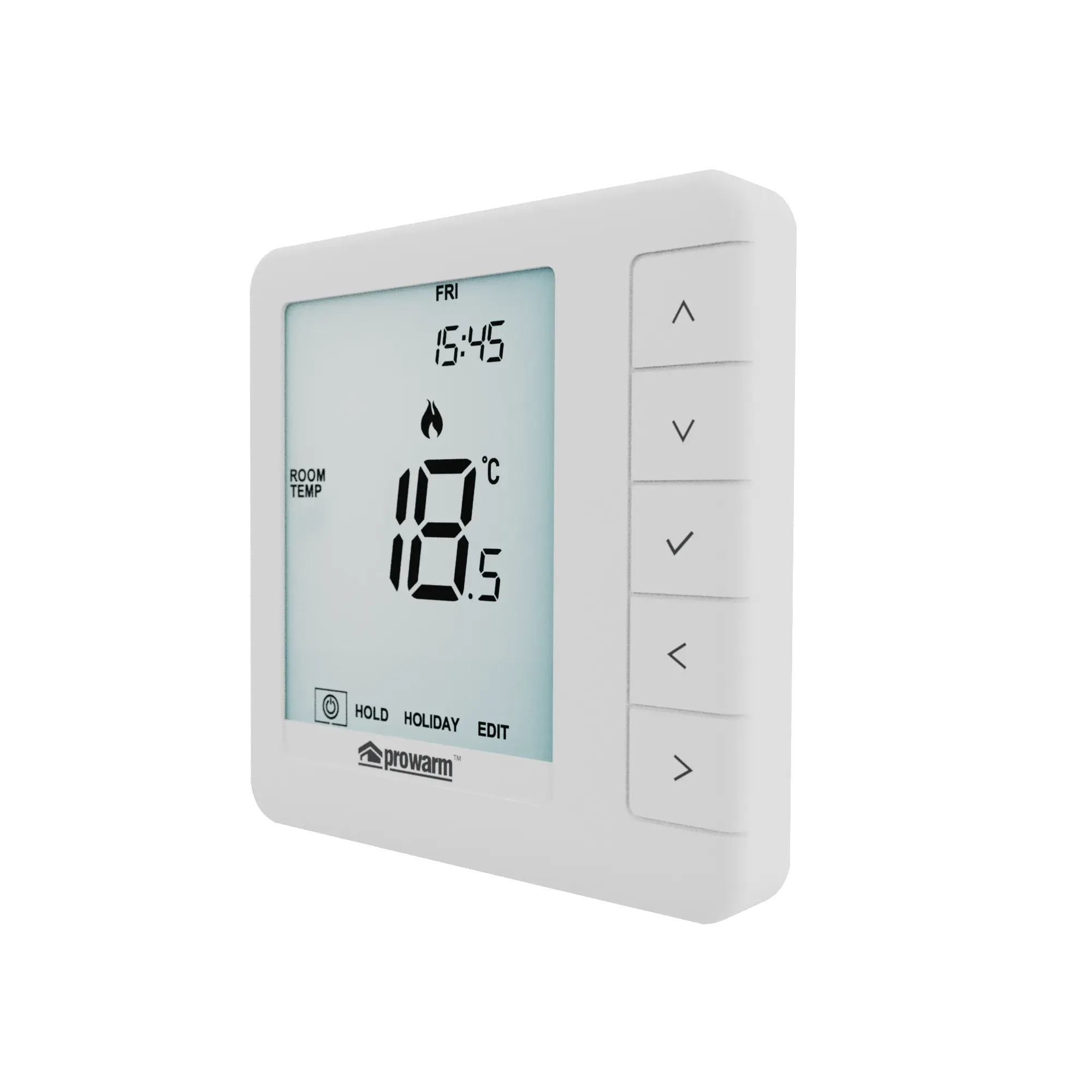

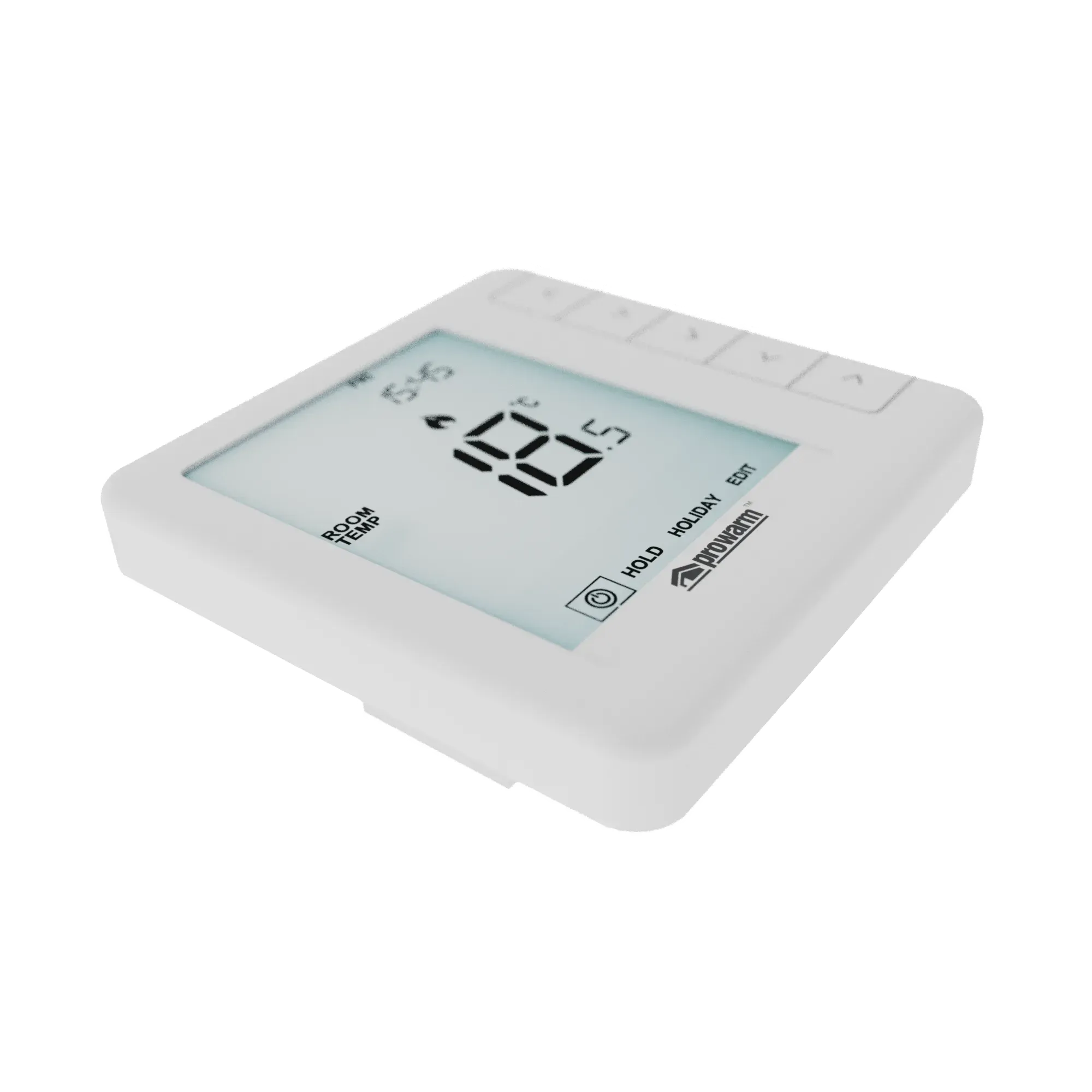

The ProWarm™ Pro Digital Thermostat is an advanced and feature-rich option for controlling the temperature of your underfloor heating system. Designed with a slimline profile, this thermostat offers precise temperature control and a range of programmable settings to suit your individual needs.

Key Features:

• Multiple Sensor Options: The Slimline Pro Digital Thermostat can utilize floor, air, or combination sensors to accurately measure and control the temperature. This flexibility allows you to choose the most suitable sensor for your specific requirements.
• Fully Programmable: This thermostat offers comprehensive programming capabilities, allowing you to set different temperature profiles for each day of the week. With up to four set points per day, you have complete control over your heating schedule.
• Stylish Design: The Pro Digital Thermostat features a sleek and contemporary white design with touch-sensitive keys, adding a modern and stylish touch to your interior. The display is equipped with a white backlight for easy readability.
• Holiday Mode and Manual Override: The thermostat includes a convenient holiday mode, which allows you to set a lower temperature during your absence to save energy. Additionally, a manual override function enables you to temporarily adjust the temperature as needed.
• Lifetime Warranty: As a testament to its quality and durability, all ProWarm™ thermostats, including the Pro Digital Thermostat, come with a lifetime warranty. This ensures long-term peace of mind and customer satisfaction.
• High Switching Capacity: The Pro Digital Thermostat can handle a maximum load of 16 amps at 230V AC, making it suitable for various heating systems.
• Adaptive Start Learning Function: The thermostat features an adaptive start learning function, which learns the optimal time to start heating in order to reach the desired temperature at the scheduled time. This promotes energy efficiency and comfort.
• Temperature Format and Clock System Options: You can choose between °F and °C temperature formats and select either a 12-hour or 24-hour clock system, allowing you to customize the thermostat's display to your preference.
• Power Break Memory: In the event of a power outage, the programs and settings on the thermostat are saved and preserved, ensuring that your desired configurations are maintained.
• 25-Year Warranty: The Pro Digital Thermostat is backed by a 25-year warranty, demonstrating its reliability and high-quality construction.
• Remote Floor Probe Included: The thermostat comes with a 3-meter remote floor probe, enabling accurate temperature measurement and control directly from the floor.

Experience the convenience and efficiency of the ProWarm™ Pro Digital Thermostat. With its advanced features, stylish design, and reliable performance, this thermostat provides precise temperature control and ensures optimal comfort in your underfloor heating system.

Specifications

Installation

This thermostat is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.

• Using a small screwdriver, slightly loosen the screw from the bottom face of the thermostat. You can then carefully separate the front half from the back plate.

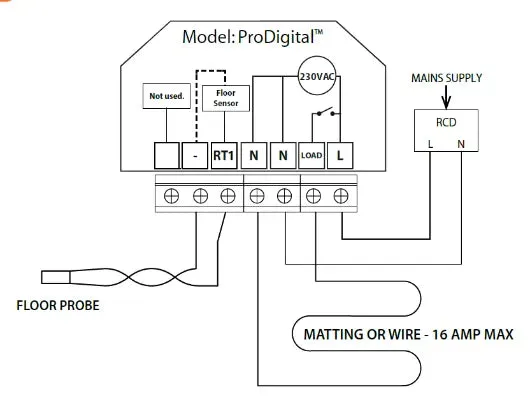

• Place the thermostat LCD front plate somewhere safe. Terminate the thermostat as shown in the diagram below.
• Screw the thermostats back plate securely into the back box.
• Replace the front of the thermostat onto the back plate, by locating the pins in the socket then insert the top edge first
