Product Details
＋

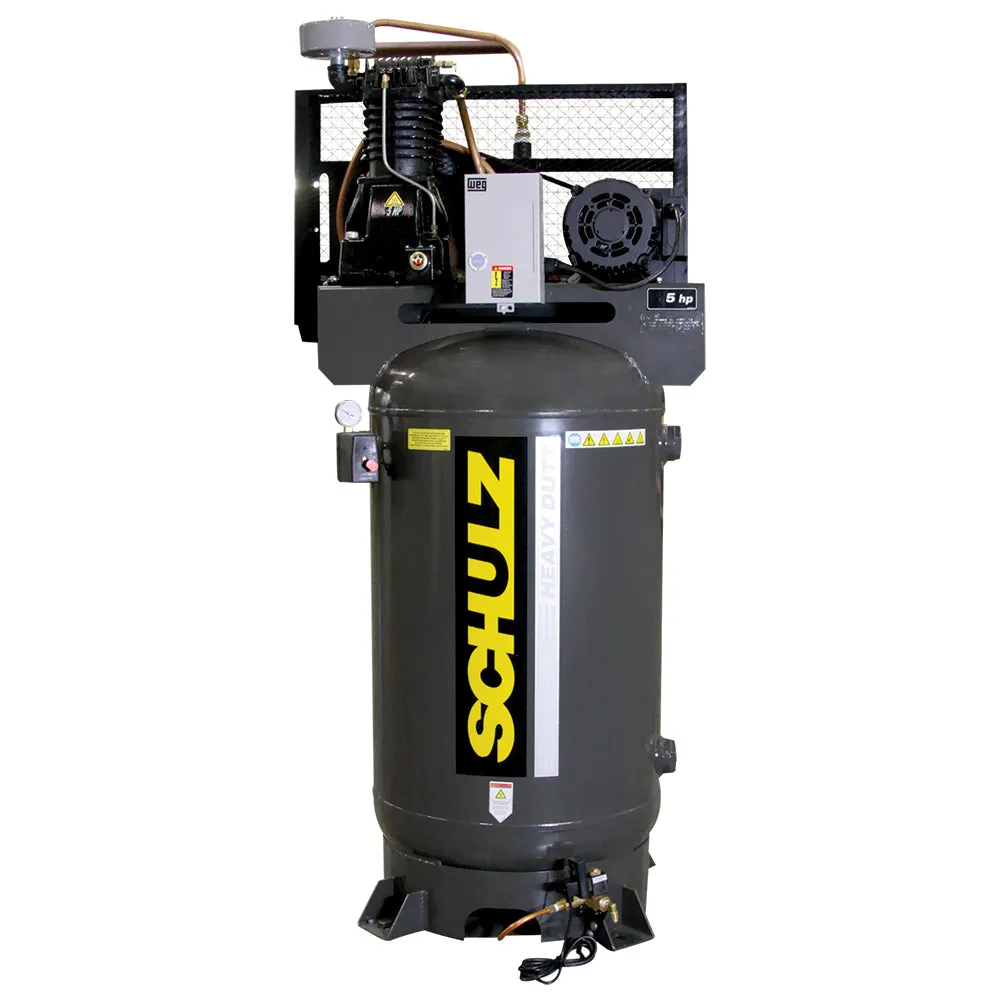

Schulz, P580VL30X-1, 5 HP, 17CFM@175 PSI, Two Stage, Vertical Tank, Air Compressor
Motor 4P, Vertical 80 Gallon Tank, 230Volt 1 Phase, MSL30MAX Pump 610 RPM
Premium Line compressors offer quality compressed air with convenience and safety. Due to the use of a mounted belt guard after cooler, the tank’s outlet temperature is lower, reducing costs relative to the installation of air dryers. The presence of oil level sensors and an automatic tank moisture drain ensure high quality and reliable downstream system performance. The ASME certified tank and UL certified starter components also ensures also the safety of the air compressor. Choose your model ready for use.
Performance Specifications:
| Item Number: 932.9361-0P |
| Model: P580VL30X-1 |
| HP: 5 |
| Pump: MSL 30 MAX |
| FAD CFM*: 17 |
| Motor/Engine: 4P |
| Tank Style: Vertical |
| Tank Gal: 80 |
| Tank Weight LBS: 750 |
