Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1040768 |
| Body Style | Cylindrical |
| Connection Type | M12 4-Pin |
| Current Consumption | ≤ 10 mA (without load) |
| Dropout Voltage | ≤ 2 V (at Ia max) |
| Frequency, Switching | 2 kHz |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Length, Housing | 65 mm |
| Measurement Range | 3.24 mm |
| Mounting Type | M12 Threaded Flush |
| Output | PNP-NC |
| Primary Type | Inductive Proximity Sensors |
| Sensing Range | ≤ 4 mm |
| Series | |
| Shielding | Shielded |
| Size, Thread | M12 x 1 |
| Supply Voltage | 10-30 VDC |
| Thread Length | 48 mm |
| Thread Size | M12 x 1 |
| Type | Inductive |
Overview

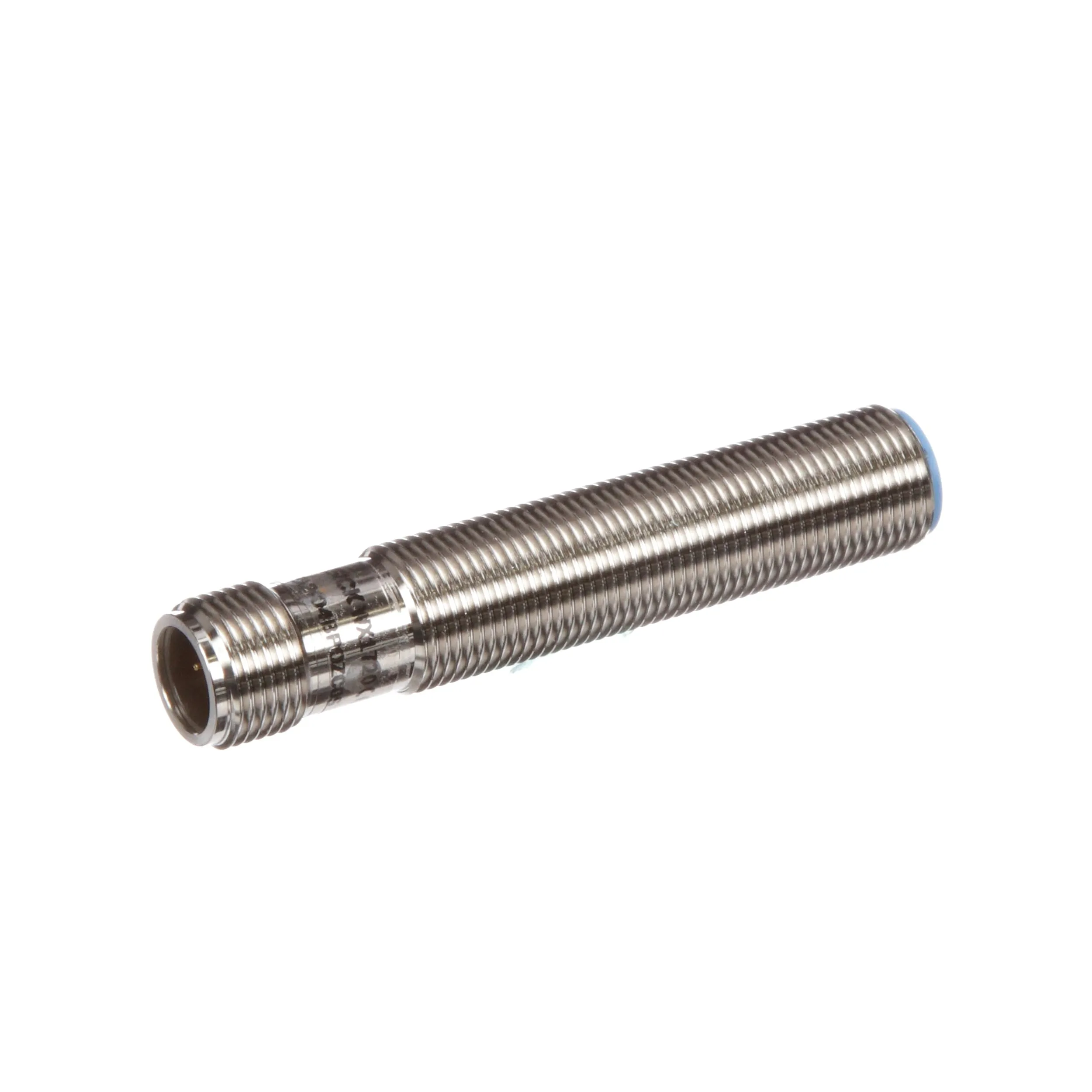

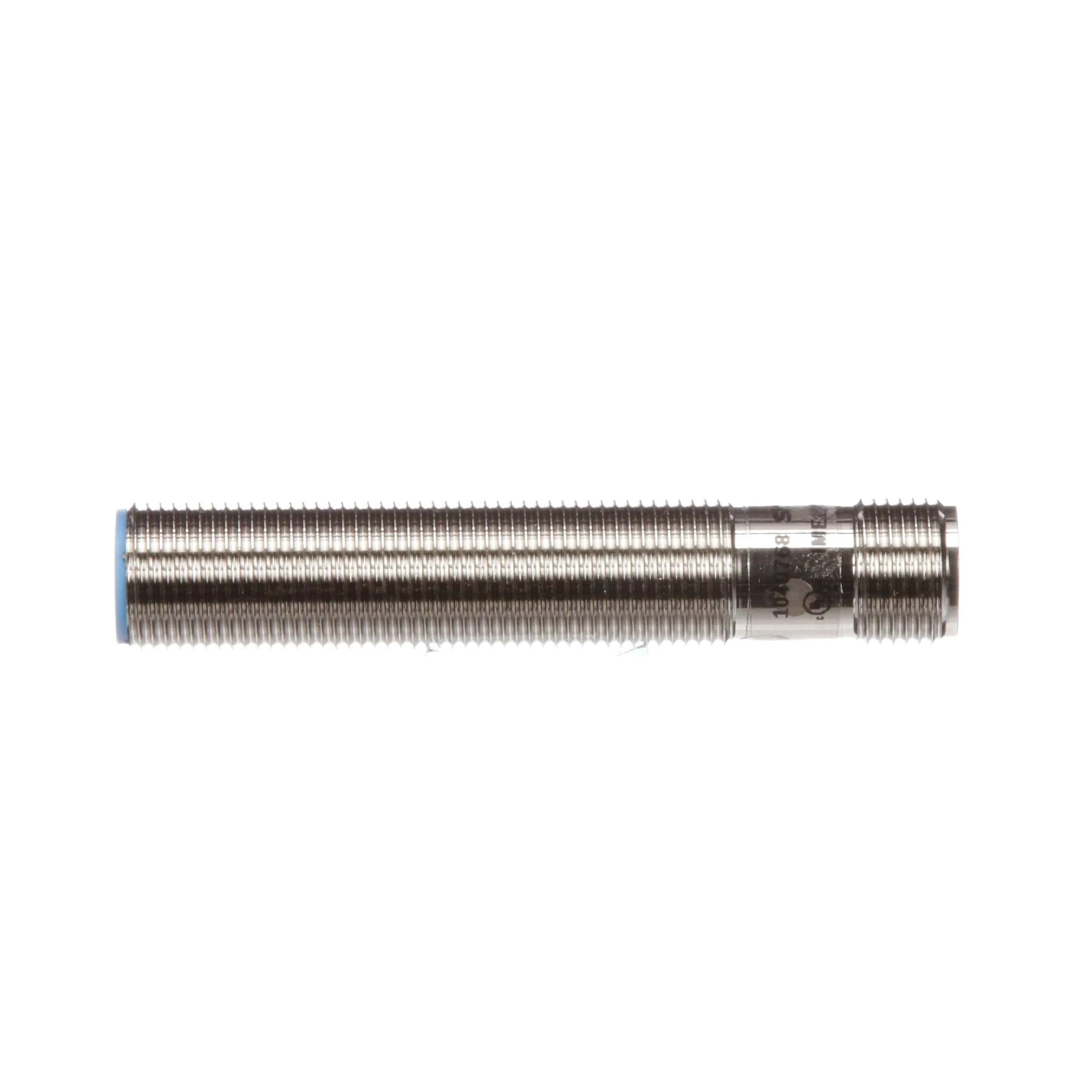

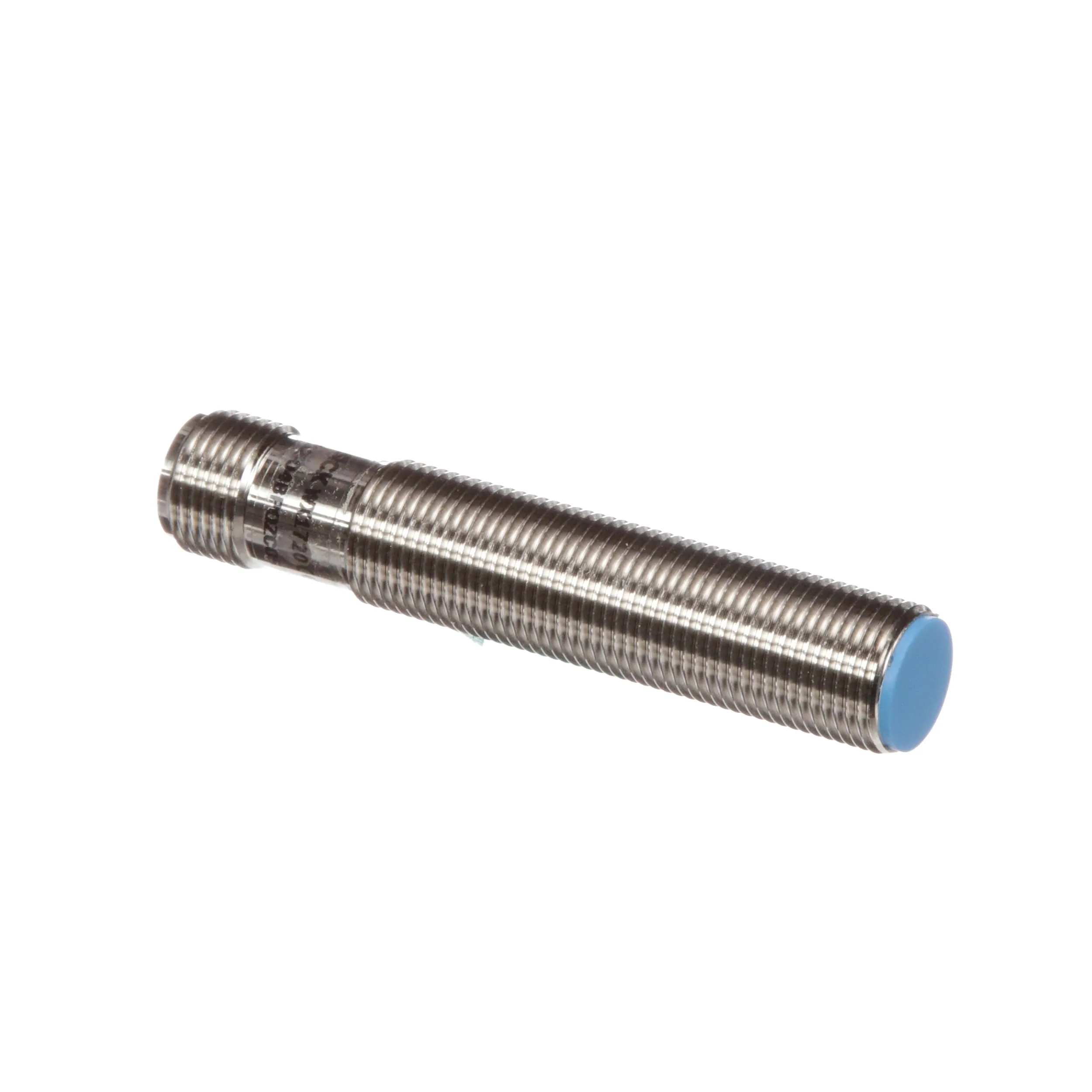

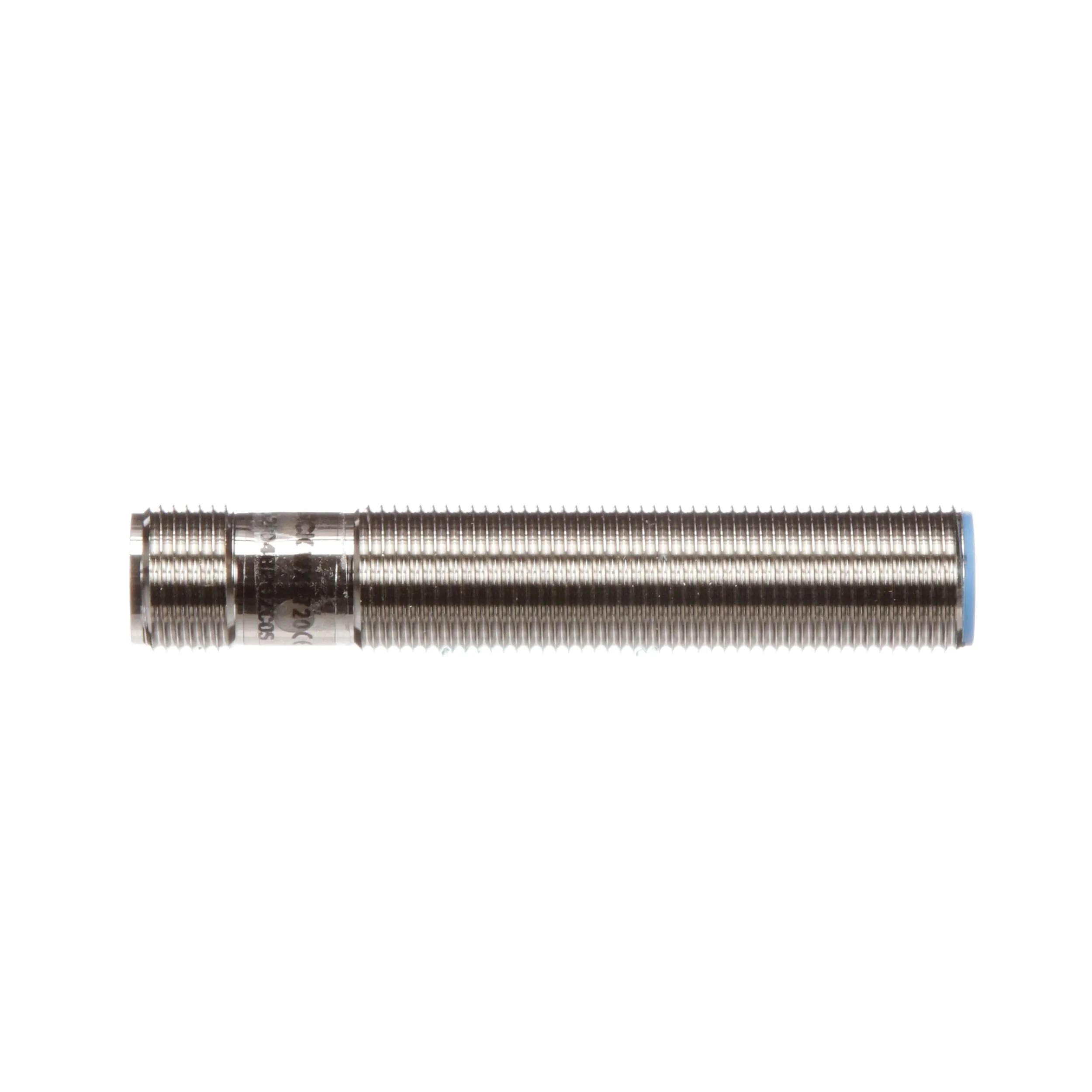

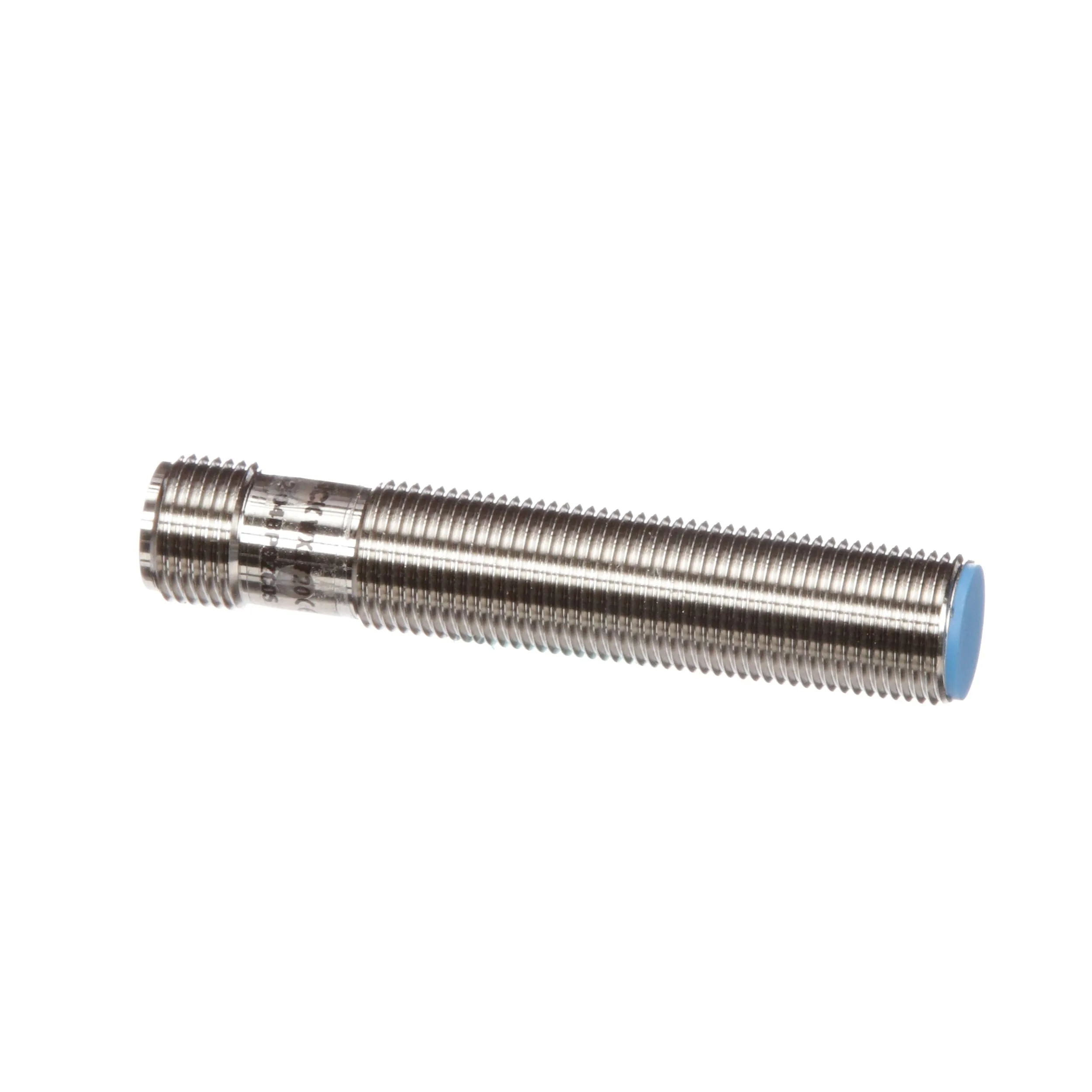

IME - The economical standard for use in industrial environments
SICK’s inductive sensors offer precise detection, less downtime, and a long service life. The IM AC inductive sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IME sensors are completely encapsulated with hot melt technology, which increases these sensors’ life under shock and vibration. The customer benefits from high positioning accuracy in the machine and long-term sensor reliability.
