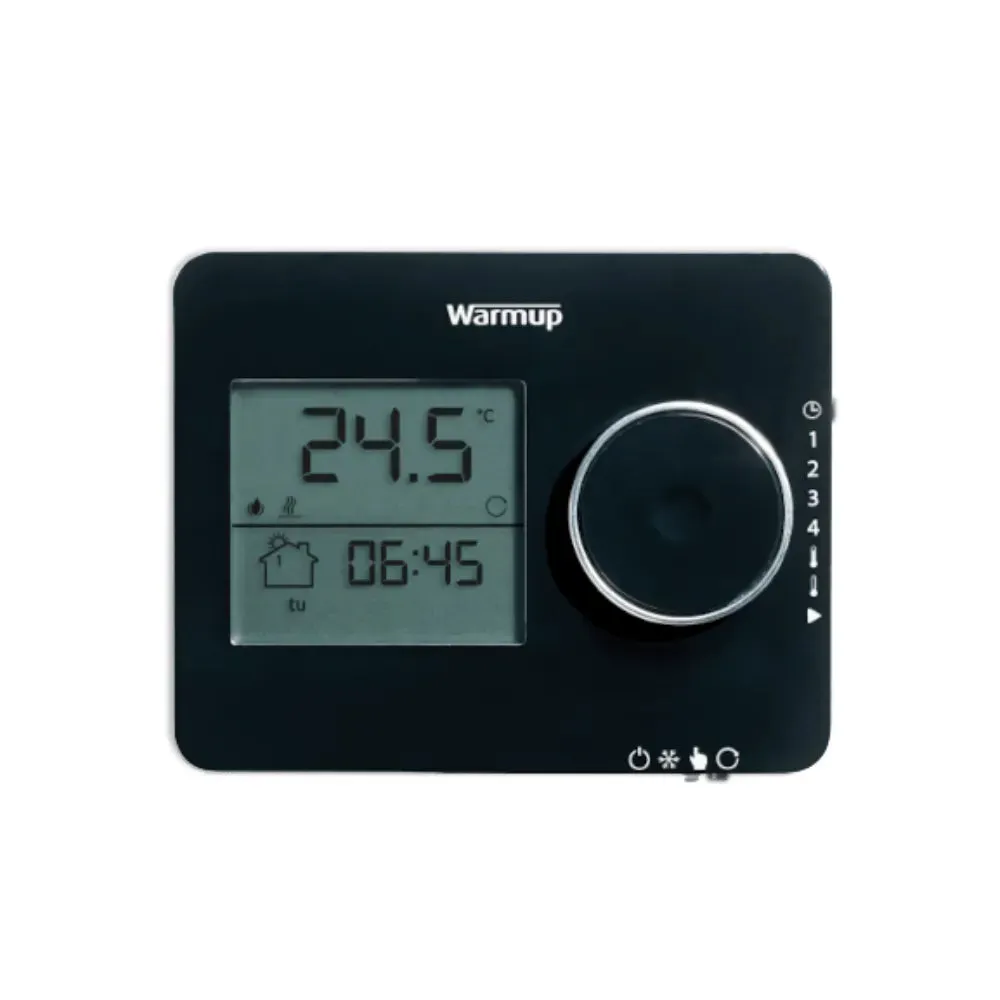

The Warmup Tempo Digital Thermostat combines a modern design with an intuitive interface, offering convenient programmable control for all Warmup electric underfloor heating systems. With its user-friendly features, you can easily program heating start and end times to achieve your desired comfort temperature in just a few simple steps. Whether you prefer a weekly, 5-2 day, or daily basis, tempo™ adapts to your needs and requirements.
Key features:
- Better Easy-to-Use Interface and Intuitive Design: The Tempo thermostat features an improved interface and intuitive design, making it effortless to navigate and operate.
- Stylish and Contemporary Design: With its sleek and contemporary design, the Tempo thermostat adds a touch of elegance to any room.
- Clear Screen Display: The clear screen displays program details, room temperature, and current time, providing you with all the necessary information at a glance.
- Easy Control with Dial and Sliders: Adjusting settings is a breeze with the convenient dial and sliders, allowing for precise control of your heating system.
- Faster Setup: The Tempo thermostat can be set up in just minutes, ensuring a hassle-free initial installation experience.
- Individualized Program Settings: Customize the program settings to perfectly suit your individual needs and preferences with just a few simple steps.
- Versatile Modes: The thermostat offers manual, automatic, and frost protection modes, allowing you to choose the mode that best fits your requirements.
- Easy Temperature Adjustment: The comfort temperature can be easily changed at any time, ensuring optimal comfort control.
- Smarter Control of Energy Costs: The Tempo thermostat helps you manage your energy costs more efficiently.
- Early Start Function: The Early Start function learns the time it takes to heat your room, ensuring it reaches the desired temperature precisely when you want it.
- Energy Efficiency: The thermostat ensures no wasted energy by heating only when required, helping you save on energy bills.
- Perfect Control for Energy Savings: Enjoy precise control over your heating system, enabling you to optimize energy usage and reduce costs.
Specifications
| Input voltage | 230V /- 15% at 50 |
|---|---|
| Max output | 16A |
| Dimensions | 90 x 113 x 23mm (flush fit) |
| Screen size | 45 x 50mm |
| Sensors | Floor/air |
| Programming | 7-day, 1 day, 5/2 day |
| Backup | Battery (3 months) |
| IP rating | IP 20 |
| Er-P Class | IV |
| Approvals | BEAB |
| Warranty | 3-Year |
Installation
Separate the front housing of thermostat from the wall module:
- Unscrew both closing screws (bottom of thermostat) until they will not turn any further.
- Release front housing by gripping the lower half of outer frame and pulling outwards then upwards.
- Place front housing somewhere safe.

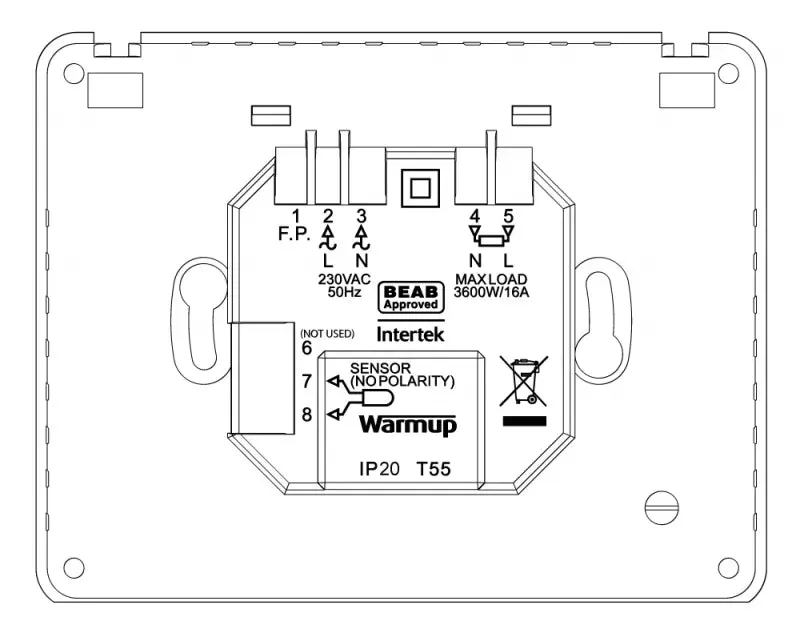

- Run all wires to the wall box.Check to ensure that you have included the following:
- Power (Live and Neutral)
- Heater (Live and Neutral)
- Floor sensor
- Fil pilote (France only)
- Pull wires through the wall box and complete terminal wiring.
IMPORTANT: Ensure that multi strand wires are fully inserted into the terminal and secured tightly. Any loose strands should be trimmed as they could cause a short-circuit.
If connecting more than two heaters, an electrical junction box will be required.
